4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter

  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
Plaats van herkomst CHINA
Merknaam ANSHI
Certificering ISO9001, SGS
Modelnummer AS-ODF-FDB-4B
Min. bestelaantal Kan bespreken
Prijs Onderhandelbaar
Levertijd 10000 stcs/week

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Naam Distributie doos met glasvezel Dimensie 140*105*27 mm
Vermogen 4 poort Sollicitatie Voet
Materiaal SPCC met Glorry -oppervlak Kleur Afwit
Verpakking 1 PCs /box
Markeren

4 port FTTH distribution box

,

wall mount fiber optic box

,

FTTH box with SC adapter
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Laat een bericht achter
Productomschrijving
ANSHI 4 Cores Fiber Optic Terminal Box

This box is the interface between drop optical cable and the patch cord connecting customer ONT.
Can used for 4 Termnations.

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Product Features

1. Material: Metal Cold Roll Sheet (SPCC)

2. Cable Port:3 Port

3. Box include the fiber organizerfor splicing and termination of the drop optical fiber cables

4. The box can install max 4pcs SC SX Adapter and 4 cores pigtails

5. Smooth installation with compliant bending radius

6. Connection, fixing and arrangement of drop cables

(1) Easy to re-enter not re-entry kit required

(2) Compliant with cable diameter from 5mm to 10mm

7. Easy installation for drop cable without specific tool

8. Open and re-closed as often as required without using power consumable material or speical tools

9. Corrosion resistance and watertight and able to protect the components from harsh, high heat, dust and humidity environment


Technical Specifications
Item AS-ODF-FDB-4B
Dimensions 140*105*27mm
Entry & Outlet Port 3 Port
Adapter

SC/UPC SM SX Adapter *4 pieces

OR

LC SM DX Adapter *4 pieces

OR

FC Adapter * 4 pieces
Adapter Ports 4 ports
Splitter Compatibility

1x4 PLC Splitter

or

Pigtail
Color Offwhite or Customize
Operating Temperature -25°C to 60°C (5-95% relative humidity)

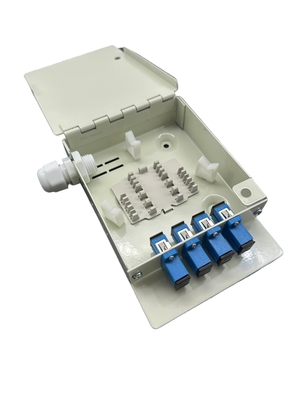

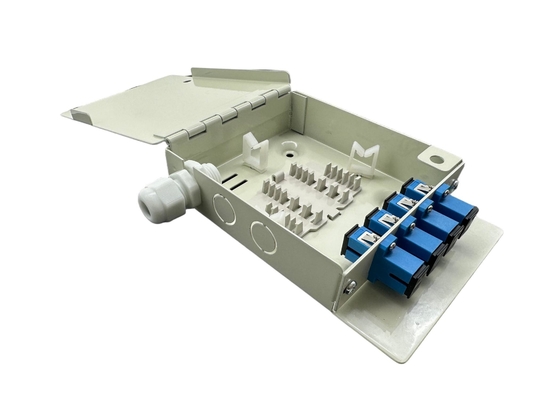

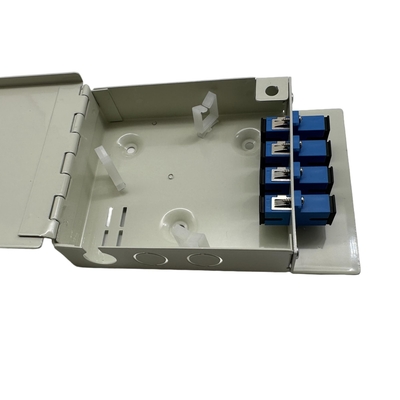

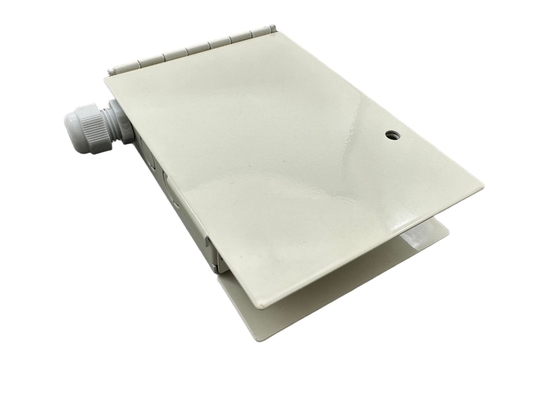

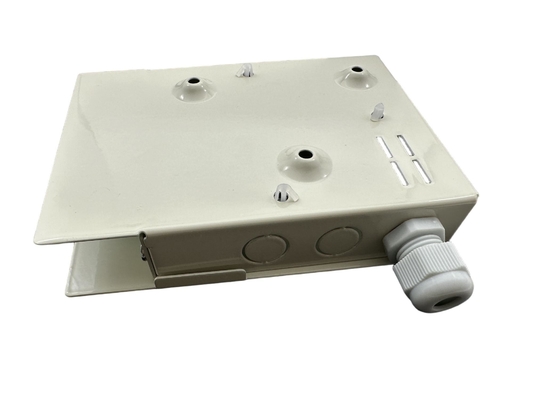

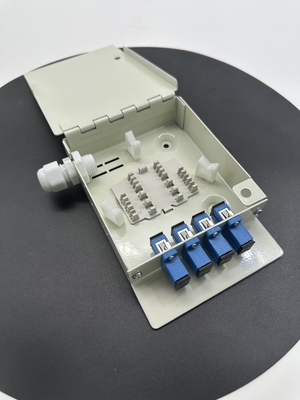

Product Images

4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter 0

Markeringen:

Doos van de vezel de Optische Distributie

Openluchtdistributiedoos

Waterdichte Einddoos
