RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections

  • RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
  • RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
  • RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
  • RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
  • RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
  • RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
  • RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
Plaats van herkomst Zhejiang, China
Merknaam ANSHI
Certificering SGS, ISO9001, DAS
Modelnummer AS-KEY-D8E
Document 180 degree CAT5e UTP Keysto...ew.pdf
Min. bestelaantal 100 stuks
Prijs 0.26-0.6
Verpakking Details 1 pc/tas, 100 stcs/binnenkast
Betalingscondities T/T
Levering vermogen 35000 stuks per week

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Pin Fosforbrons Beplating Gouden plating, generaal is 3u ''
Jacktype RJ45 Kleur Kan worden aangepast,
Categorie cat6 cat6a Materiaal Pc+fosforbrons
Markeren

180 Degree Keystone Jack

,

Gold Plating RJ45 Keystone Jack

,

Fluke Test Certified Modular Jack
Laat een bericht achter
Productomschrijving
CAT 6 180° Punch Down UTP Keystone Jack

100% Pass Fluke Test RJ45 CAT6/CAT6A UTP 180 Degree Keystone Jack Dual IDC

FLUKE for CAT6: 7.2dB

RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections 0
Key Features
  • Various information modules provide multiple choices for wiring system
  • Design exceeds standard requirements for superior performance
  • Color-coded units for easy identification and network management
  • Versatile configuration to meet various work allocation requirements
Certifications & Standards
  • Meets FCC parts 68
  • ANSI/TIA/EIA-568B
  • ISO/IEC 11801
  • ETL verified EIA/TIA T568B: Cat. 6 channel link
Technical Specifications
Physical Properties
  • IDC connector accepts 22-26 AWG solid wire
  • 50-micron inch gold plate over 100-micron inch nickel contacts
  • High impact flame retardant plastic housing (UL94V-0 rated)
  • Compatible with 110 punch down and Krone tools
Mechanical Properties
  • Plug insertion life: 750 cycles
  • Plug retention force: 30lbs
Electrical Properties
  • Current rating: 1.5A
  • Insulation resistance: 500M Ohms minimum
  • Contact resistance: 20 Milli-ohms maximum
  • DC resistance: 0.1 Ohms maximum
  • Data transmission rates up to 250Mbps

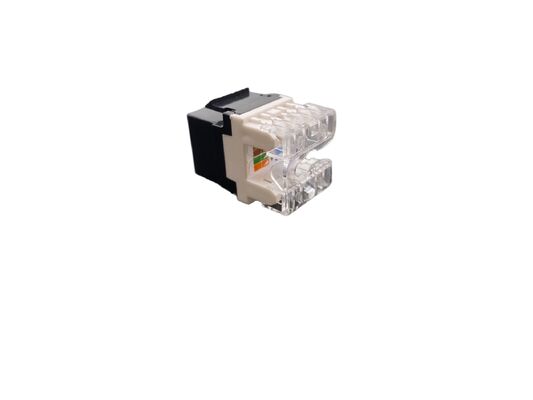

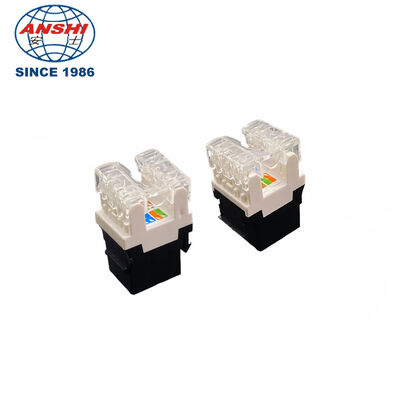

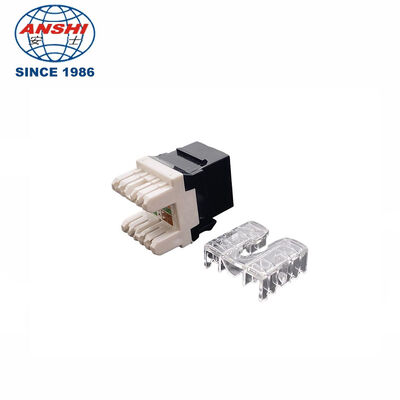

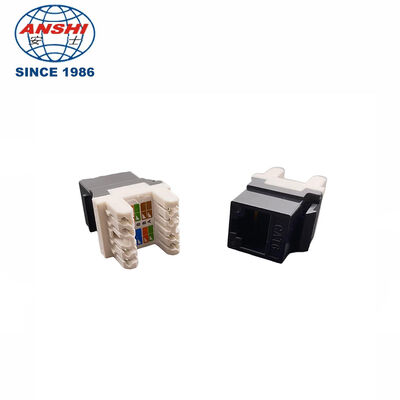

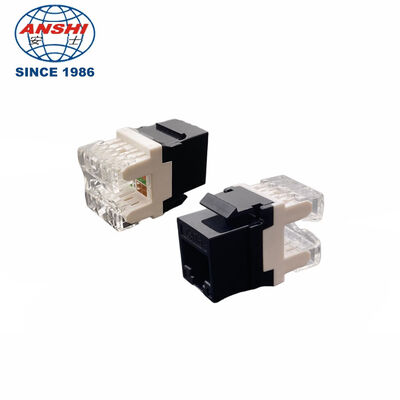

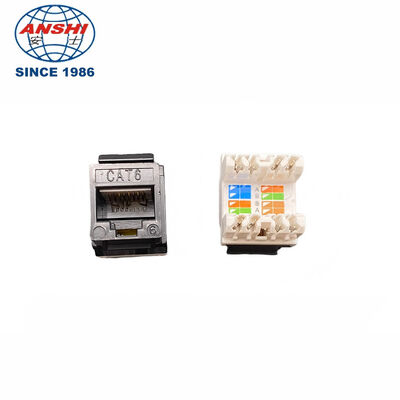

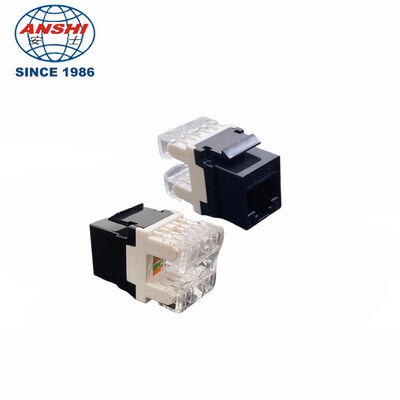

Product Image
RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections 1
